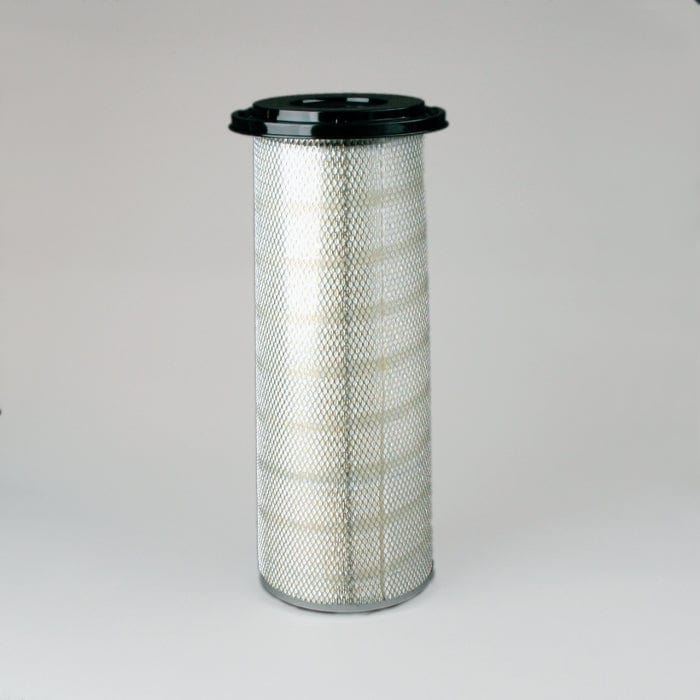

Air Filter, Primary Konepac - Donaldson P150695
Air Filter, Primary Konepac - Donaldson P150695
Regular price
£136.30
Regular price
Sale price
£136.30
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P150695
Air Filter, Primary Konepac| Outer Diameter | 10.62 inch (269.8 mm) |
| Inner Diameter | 6.61 inch (167.8 mm) |
| Length | 28.02 inch (711.7 mm) |
| Minor OD | 9.21 inch (233.9 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | ECG |
| Type | Primary |
| Style | Cone |
| Brand | Konepac™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 269.8 mm (10.62 inch)
- Inner Diameter: 167.8 mm (6.61 inch)
- Length: 711.7 mm (28.02 inch)
- Minor OD: 233.9 mm (9.21 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: ECG
- Type: Primary
- Style: Cone
- Brand: Konepac™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.335 m (13.40 inch)
- Packaged Width: 0.330 m (13.20 inch)
- Packaged Height: 0.765 m (30.60 inch)
- Packaged Weight: 5.364 kg (11.82 lb)
- Packaged Volume: 0.088 m3 (3.13 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330013311
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1140C | |
| AMERICAN PARTS | 94882 | |
| BIG A | 94882 | |
| CATERPILLAR | 3I0405 | |
| CUMMINS | 01402464 | |
| DART | PPP150695 | |
| DONSSON | DA2513 | |
| FORD | 9576P150695 | |
| FREIGHTLINER | P150695 | |
| FREIGHTLINER | DNP150695 | |
| FREIGHTLINER | 2505002000 | |
| IVECO | 97136305 | |
| KRALINATOR | LA1225 | |
| MACK | 57MD42 | |
| MACK | 2MD4128M | |
| MACK | 57MD42M | |
| MACK | 57MD428M | |
| MACK | 25042054 | |
| MACK | FA2191P901439 | |
| METSO | 31483001 | |
| NABI BUS | 6302034 | |
| NELSON | 70016S | |
| NEOPLAN | DONP150695 | |
| NUTECH | N0397 | |
| ONAN | 1402464 | |
| ONAN | 01402464 | |
| PAI INDUSTRIES INC | FAF4558 | |
| PETERBILT | PPP150695 | |
| PREVOST CAR | 530162 | |
| REFILCO | AF695 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686984 | |
| UNITED ENGINE LIFE | DEL150695 | |
| VMC | AF150695 | |
| VOLVO | 1110903 | |
| VOLVO | V1110903 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FREIGHTLINER FL112 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| FREIGHTLINER FL112 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| FREIGHTLINER FLA | - | TRUCK | - | CUMMINS NTC855 | - |
| FREIGHTLINER FLA | - | TRUCK | - | CUMMINS N14 | - |
| FREIGHTLINER FLA | - | TRUCK | - | CATERPILLAR 3406 | - |
| FREIGHTLINER FLA300 | - | TRUCK | - | CUMMINS N14 | - |
| FREIGHTLINER FLA370 | - | TRUCK | - | CUMMINS N14 | - |
| FREIGHTLINER FLA424 | - | TRUCK | - | - FLA424 | - |
| FREIGHTLINER FLB9064ST | - | TRUCK | - | CUMMINS N14 | - |
| FREIGHTLINER FLC112 | - | TRUCK | - | CATERPILLAR 3306 | - |
| FREIGHTLINER FLC112 | - | TRUCK | - | CUMMINS NTC315 | - |
| FREIGHTLINER FLC112 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| FREIGHTLINER FLC112 | - | TRUCK | - | - FLC112 | - |
| FREIGHTLINER FLC120 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| FREIGHTLINER FLC120 | - | TRUCK | - | CATERPILLAR 3306 | - |
| FREIGHTLINER FLC120 | - | TRUCK | - | CUMMINS NTC315 | - |
| FREIGHTLINER FMC | - | TRUCK | - | - FMC | - |
| MACK CH613 | - | TRUCK | - | MACK E7 | - |
| MACK CL653 | - | TRUCK | - | - CL653 | - |
| MACK CL713 | - | TRUCK | - | CATERPILLAR 3406 | - |
| MACK CL713 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | CUMMINS ISX | - |
| MACK CL713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK CL733 | - | TRUCK | - | CUMMINS ISX | - |
| MACK GRANITE | 2006 - 2012 | TRUCK | - | MACK MP7 | - |
| MACK GRANITE | - | TRUCK | - | MACK E7 | - |
| MACK SUPERLINER | - | TRUCK | - | MACK MP10 | - |
| MACK TITAN | 2008 - 2017 | TRUCK | - | MACK MP10 | - |
| MACK VISION | - | TRUCK | AE01 TO AE07 | MACK E7 | - |
| PETERBILT 362 | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 377 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
