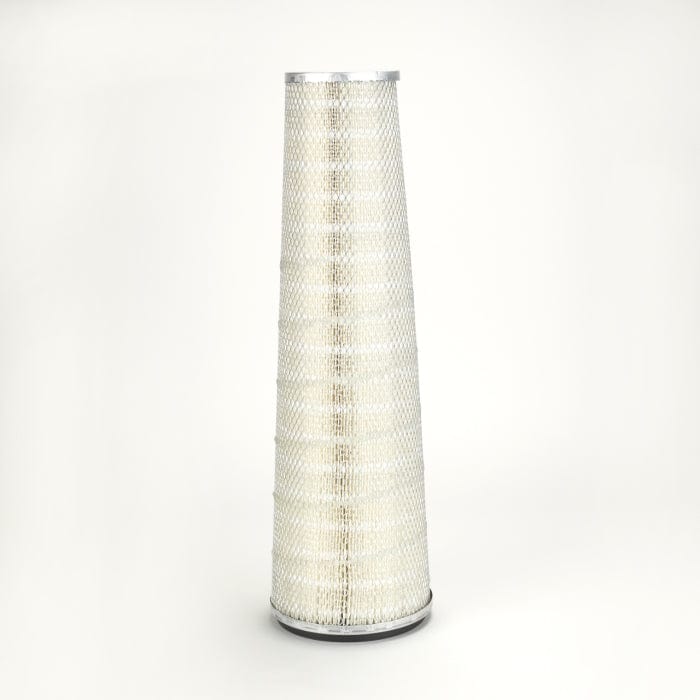

Air Filter, Primary Konepac - Donaldson P150692
Air Filter, Primary Konepac - Donaldson P150692
Regular price
£80.48
Regular price
Sale price
£80.48
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P150692
Air Filter, Primary Konepac| Outer Diameter | 8.67 inch (220.1 mm) |
| Inner Diameter | 5.20 inch (132.2 mm) |
| Length | 28.00 inch (711.2 mm) |
| Minor OD | 5.74 inch (145.9 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | ECG |
| Type | Primary |
| Style | Cone |
| Brand | Konepac™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 220.1 mm (8.67 inch)
- Inner Diameter: 132.2 mm (5.20 inch)
- Length: 711.2 mm (28.00 inch)
- Minor OD: 145.9 mm (5.74 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: ECG
- Type: Primary
- Style: Cone
- Brand: Konepac™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.238 m (9.50 inch)
- Packaged Width: 0.228 m (9.10 inch)
- Packaged Height: 0.755 m (30.20 inch)
- Packaged Weight: 3.089 kg (6.81 lb)
- Packaged Volume: 0.042 m3 (1.51 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330013281
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1078C | |
| AMERICAN MOTORS CORPORATION | SFA0692PK | |
| BIG A | 94878 | |
| CATERPILLAR | 3I0402 | |
| CRANE CARRIER | 102B0069 | |
| EXMAN | SFA0692PK | |
| FORD | 9576P150692 | |
| FREIGHTLINER | DNP150692 | |
| HYSTER | 1344037 | |
| LOESING | 020786 | |
| LOESING | 20786 | |
| MACK | 21292492 | |
| NACCO MATERIALS | 1344037 | |
| NELSON | 84916S | |
| ONAN | 01402635 | |
| ONAN | 1402635 | |
| VMC | AF150692 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MACK TITAN | 2008 - 2017 | TRUCK | - | MACK MP10 | - |
