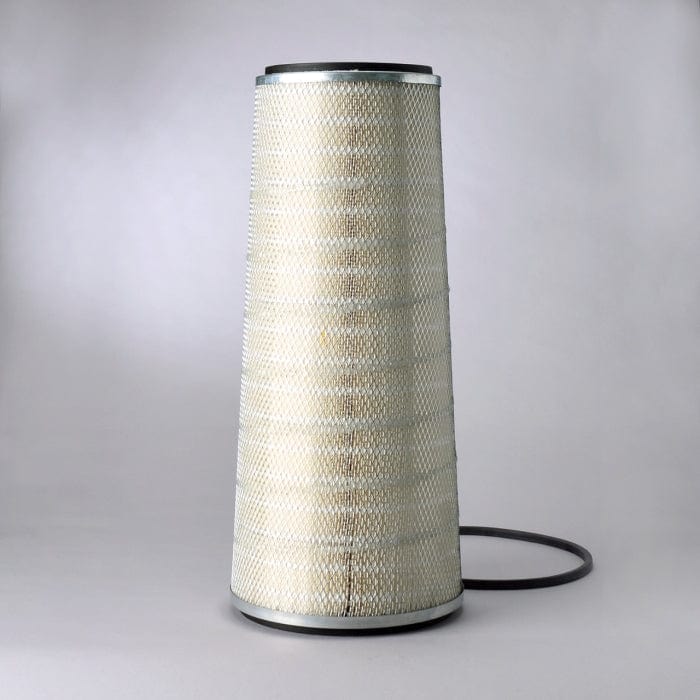

Air Filter, Primary Konepac - Donaldson P141228
Air Filter, Primary Konepac - Donaldson P141228
Regular price
£131.14
Regular price
Sale price
£131.14
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P141228
Air Filter, Primary Konepac| Outer Diameter | 12.75 inch (323.85 mm) |
| Inner Diameter | 8.32 inch (211.33 mm) |
| Length | 28.00 inch (711.2 mm) |
| Minor OD | 9.81 inch (249.17 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | EBA |
| Type | Primary |
| Style | Cone |
| Brand | Konepac™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 323.85 mm (12.75 inch)
- Inner Diameter: 211.33 mm (8.32 inch)
- Length: 711.2 mm (28.00 inch)
- Minor OD: 249.17 mm (9.81 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: EBA
- Type: Primary
- Style: Cone
- Brand: Konepac™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 1.11 FT
- Packaged Width: 1.11 FT
- Packaged Height: 2.55 FT
- Packaged Weight: 5.947 kg (13.10 lb)
- Packaged Volume: 0.088 m3 (3.13 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330012468
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A986C | |
| AMERICAN PARTS | 94885 | |
| BIG A | 94885 | |
| CASE/CASE IH | E2HZ9601A | |
| CATERPILLAR | 3I0343 | |
| CATERPILLAR | 7C8318 | |
| DART | PPP141228 | |
| FIAT | E2HZ9601A | |
| FORD | E1HZ9601AA | |
| FORD | E2HT9600ACA | |
| FORD | E2HZ9601A | |
| FORD | EBA132006 | |
| FORD | E2H29601A | |
| FORD | 9576P141228 | |
| FREIGHTLINER | DNP141228 | |
| FREIGHTLINER | PPP141228 | |
| GUARDIAN | G141228 | |
| KRALINATOR | LA1101 | |
| MACK | 2191P141228 | |
| MACK | 57MD41M | |
| MACK | 57MD41 | |
| MERCEDES-BENZ | VDNP141228 | |
| NELSON | 70233N | |
| NELSON | 141228 | |
| NELSON WINSLOW | 141228 | |
| NEW HOLLAND | E2HZ9601A | |
| NUTECH | S0691 | |
| NUTECH | S0591 | |
| NUTECH | N0691 | |
| NUTECH | N0591 | |
| PRO MATCH | 7C8318 | |
| REFILCO | AF6885 | |
| STEWART & STEVENSON | 196799 | |
| STEWART & STEVENSON | 195799 | |
| TIM | 7C8318 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686896 | |
| VMC | AF141228 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FREIGHTLINER ARGOSY | - | TRUCK | - | CUMMINS ISX | - |
| FREIGHTLINER ARGOSY | - | TRUCK | - | DETROIT DIESEL DD15 | - |
| FREIGHTLINER ARGOSY | - | TRUCK | - | CUMMINS ISXE5 | - |
| FREIGHTLINER ARGOSY | - | TRUCK | - | DETROIT DIESEL DD15 | EURO 5 |
| FREIGHTLINER FL112 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| FREIGHTLINER FL112 | - | TRUCK | - | DETROIT DIESEL SERIES 60 | - |
| MACK MH613 | - | TRUCK | - | MACK E7 | - |
