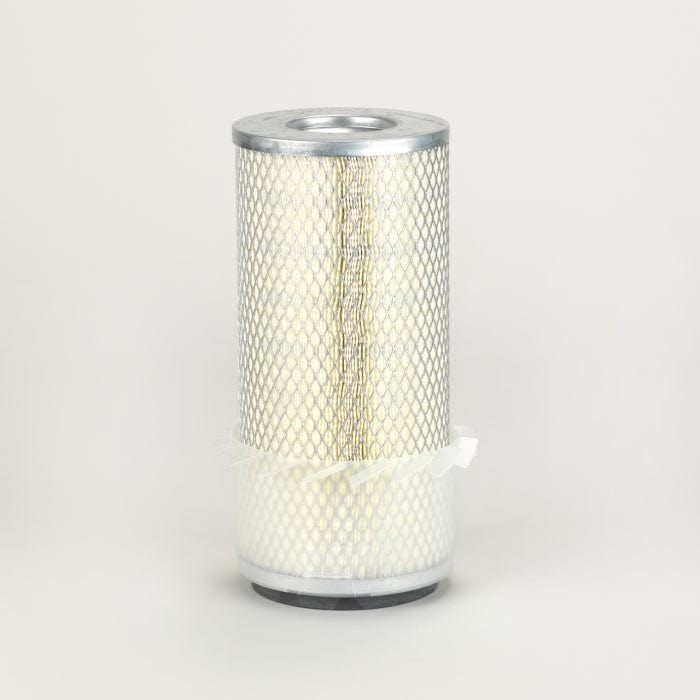

Air Filter, Primary Finned - Donaldson P776615
Air Filter, Primary Finned - Donaldson P776615
Regular price
£29.18
Regular price
Sale price
£29.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P776615
Air Filter, Primary Finned| Outer Diameter | 5.24 inch (133 mm) |
| Inner Diameter | 3.33 inch (84.5 mm) |
| Length | 11.02 inch (280 mm) |
| Bolt Hole Diameter | 0.47 inch (12 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Finned |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 133 mm (5.24 inch)
- Inner Diameter: 84.50 mm (3.33 inch)
- Length: 280 mm (11.02 inch)
- Bolt Hole Diameter: 12 mm (0.47 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Finned
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.167 m (6.69 inch)
- Packaged Width: 0.167 m (6.69 inch)
- Packaged Height: 0.325 m (12.99 inch)
- Packaged Weight: 0.935 kg (2.06 lb)
- Packaged Volume: 0.010 m3 (0.34 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330048832
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | SFA6615PF | |
| AMERICAN MOTORS CORPORATION | AF18620 | |
| AMERICAN PARTS | 94374 | |
| BIG A | 94374 | |
| BIG A | 94394 | |
| CATERPILLAR | 971293 | |
| EXMAN | AF18620 | |
| EXMAN | SFA6615PF | |
| FODEN | Y05770201 | |
| GPC | FC3221 | |
| GPC | FC3221K | |
| HYUNDAI | 11S120110 | |
| KRALINATOR | LA1399F | |
| LOESING | 022051 | |
| LOESING | 22051 | |
| MANITOU | 178032300171M | |
| MITSUBISHI | 9146111500 | |
| TOYOTA | 178032300071 | |
| TOYOTA | 17803F980171 | |
| TOYOTA | 178032300171M | |
| VMC | AF776615 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR DP20 | - | FORKLIFT | - | - DP20 | - |
| CATERPILLAR DP25 | - | FORKLIFT | - | - DP25 | - |
| CATERPILLAR DP30 | - | FORKLIFT | - | - DP30 | - |
| CATERPILLAR DP35 | - | FORKLIFT | - | - DP35 | - |
| HYUNDAI HSL610 | - | SKID STEER LOADER | HSL SERIES | YANMAR 4TNE88 | - |
| HYUNDAI HSL810 | - | SKID STEER LOADER | HSL SERIES | YANMAR 4TNE88 | - |
| HYUNDAI R55-3 | - | EXCAVATOR COMPACT | ROBEX | YANMAR 4TNE94 | - |
| HYUNDAI R55W-3 | - | EXCAVATOR COMPACT | ROBEX | YANMAR 4TNE94 | - |
| HYUNDAI R95W-3 | - | EXCAVATOR WHEELED | ROBEX | MITSUBISHI S4S-DT | - |
| KOMATSU D21P-6B | - | DOZER TRACKED | - | - D21P-6B | - |
| KOMATSU DDM020-3 | - | DOZER TRACKED | - | - DDM020-3 | - |
| MITSUBISHI FD35A | - | FORKLIFT | FD SERIES | MITSUBISHI S4E2 | - |
| MITSUBISHI FD40 | - | FORKLIFT | FD SERIES | MITSUBISHI 56E | - |
| TOYOTA 022TD15 | - | FORKLIFT | - | TOYOTA 1DZ | - |
| TOYOTA 022TD18 | - | FORKLIFT | - | TOYOTA 1DZ | - |
| TOYOTA 022TD23 | - | FORKLIFT | - | TOYOTA 4Y | - |
| TOYOTA 25FGF-18LP | - | FORKLIFT | - | - 25FGF-18LP | - |
| TOYOTA 2TD15 | - | FORKLIFT | - | TOYOTA 2J | - |
| TOYOTA 2TD23 | - | FORKLIFT | - | TOYOTA 1DZ | - |
| TOYOTA 2TD25 | - | FORKLIFT | - | TOYOTA 4Y | - |
| TOYOTA 2TG20 | - | FORKLIFT | - | TOYOTA 1DZ | - |
| TOYOTA 2TG25 | - | FORKLIFT | - | TOYOTA 4Y | - |
| TOYOTA 5FD18 | - | FORKLIFT | - | TOYOTA 4P | - |
| TOYOTA 5FD33 | - | FORKLIFT | - | TOYOTA 11Z | - |
| TOYOTA 5FD45 | - | FORKLIFT | - | TOYOTA 11Z | - |
| TOYOTA 5FG10 | - | FORKLIFT | - | TOYOTA 4Y | - |
| TOYOTA 5FG18 | - | FORKLIFT | - | TOYOTA 5K | - |
| TOYOTA 5FG45 | - | FORKLIFT | - | TOYOTA 11Z | - |
