• Donaldson Air Filter, Primary Finned - Donaldson P546566
1 1

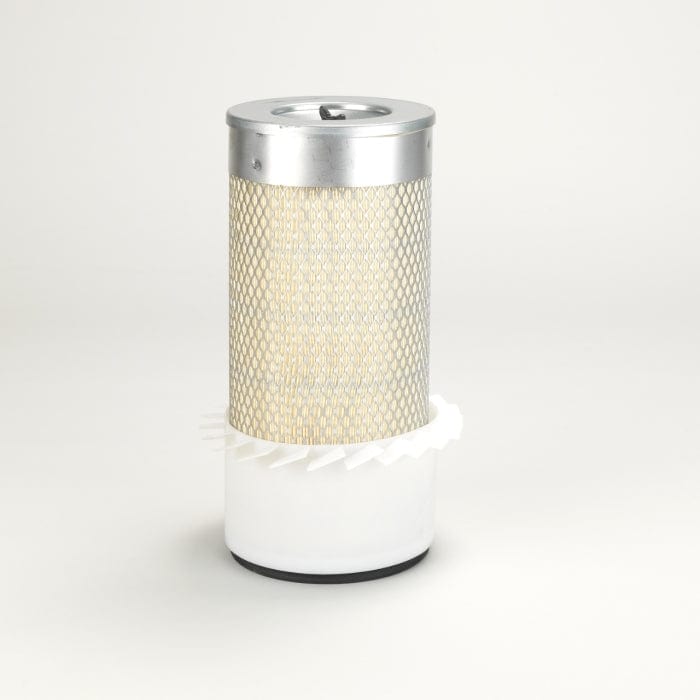

Air Filter, Primary Finned - Donaldson P546566

Air Filter, Primary Finned - Donaldson P546566

£68.70
£68.70
Sale Sold out
Shipping calculated at checkout.

Donaldson P546566

Air Filter, Primary Finned
Outer Diameter 6.08 inch (154.43 mm)
Inner Diameter 3.47 inch (88.14 mm)
Length 13.00 inch (330.2 mm)
Bolt Hole Diameter 0.66 inch (16.76 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Finned
View full details

Specifications

Attributes

  • Outer Diameter: 154.43 mm (6.08 inch)
  • Inner Diameter: 88.14 mm (3.47 inch)
  • Length: 330.2 mm (13.00 inch)
  • Bolt Hole Diameter: 16.76 mm (0.66 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Finned

Packaged Dimensions

  • Packaged Length: 0.225 m (9.00 inch)
  • Packaged Width: 0.223 m (8.90 inch)
  • Packaged Height: 0.378 m (15.10 inch)
  • Packaged Weight: 1.544 kg (3.40 lb)
  • Packaged Volume: 0.020 m3 (0.70 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-03
  • HTS Code: 8421310090
  • UPC Code: 742330111215

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A1581C
BIG A 94537
BIG A 94487
FIAT NH1909116
FIAT MH1909116
JOHN DEERE RE45827
JOHN DEERE M132089
JOHN DEERE MG86512356
KRALINATOR LA1759F
KRALINATOR LA1757F
KUKJE TH62060000A4
KUKJE TH6206A4
NELSON 70745B
NELSON 70966N
NELSON 70745N
NEW HOLLAND 86529587
NEW HOLLAND 86512356
VMC AF546566

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 5300N - TRACTOR 5000 SERIES - 5300N -
JOHN DEERE 5400 - TRACTOR 5000 SERIES JOHN DEERE 3029T -
JOHN DEERE 5400N - TRACTOR 5000 SERIES - 5400N -
JOHN DEERE 5500 - TRACTOR 5000 SERIES JOHN DEERE 4039T -
JOHN DEERE 5500N - TRACTOR 5000 SERIES - 5500N -
NEW HOLLAND L865 - SKID STEER LOADER - - L865 -
NEW HOLLAND L885 - SKID STEER LOADER - - L885 -
