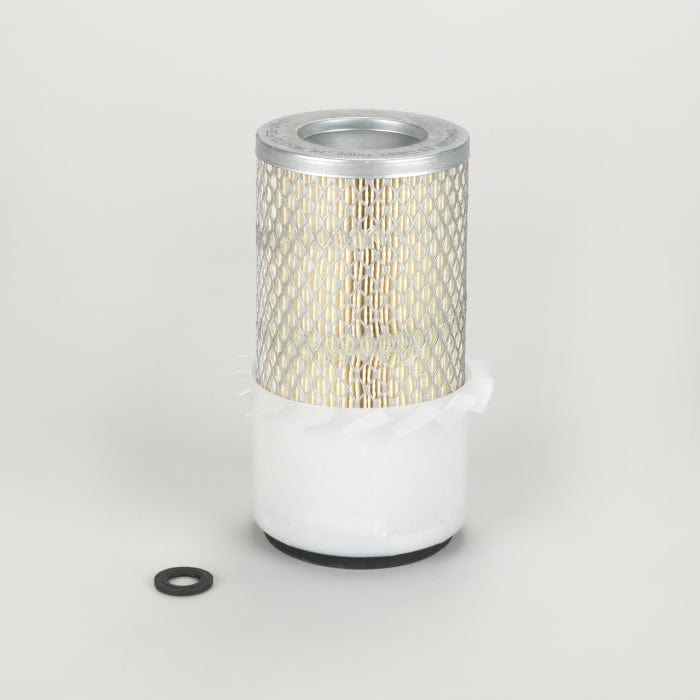

Air Filter, Primary Finned - Donaldson P533597
Air Filter, Primary Finned - Donaldson P533597
Regular price
£22.04
Regular price
Sale price
£22.04
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P533597
Air Filter, Primary Finned| Outer Diameter | 4.09 inch (104 mm) |
| Inner Diameter | 2.48 inch (62.9 mm) |
| Length | 8.00 inch (203.2 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Finned |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 104 mm (4.09 inch)
- Inner Diameter: 62.9 mm (2.48 inch)
- Length: 203.2 mm (8.00 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Finned
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.138 m (5.50 inch)
- Packaged Width: 0.138 m (5.50 inch)
- Packaged Height: 0.273 m (10.90 inch)
- Packaged Weight: 0.620 kg (1.37 lb)
- Packaged Volume: 0.005 m3 (0.19 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330039397
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 94452 | |
| FORD | 9576P533597 | |
| FREIGHTLINER | DNP533597 | |
| GPC | FC686 | |
| GPC | FC686K | |
| JOHN DEERE | AM108184 | |
| KRALINATOR | LA1617F | |
| LOESING | 21860 | |
| LOESING | 021860 | |
| NELSON | 70750A | |
| UNITED CENTRAL INDUSTRIAL SUPP | 366550 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 908827 | |
| VMC | AF533597 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JOHN DEERE 3215B | - | LAWN EQUIPMENT | TURF SYSTEM I | YANMAR 3TNE82 | - |
| JOHN DEERE 3225B | - | LAWN EQUIPMENT | TURF SYSTEM II | YANMAR 3TNE84 | - |
| JOHN DEERE 3235B | - | LAWN EQUIPMENT | TURF SYSTEM II | YANMAR 3TNE84 | - |
| JOHN DEERE 755 | - | TRACTOR | - | YANMAR 3TNA72E | - |
| JOHN DEERE 755 | - | TRACTOR | - | - 755 | - |
| JOHN DEERE 756 | - | TRACTOR | - | - 756 | - |
| JOHN DEERE 855 | - | TRACTOR | 800 SERIES | - 855 | - |
| JOHN DEERE 855 | - | TRACTOR | - | YANMAR 3TNE78 | - |
| JOHN DEERE 955 | - | TRACTOR | 900 SERIES | YANMAR 3TNE84 | - |
| JOHN DEERE F1145 | - | LAWN EQUIPMENT | - | YANMAR 3TN75 | - |
| JOHN DEERE F1145 | - | LAWN EQUIPMENT | - | YANMAR 3TN78 | - |
