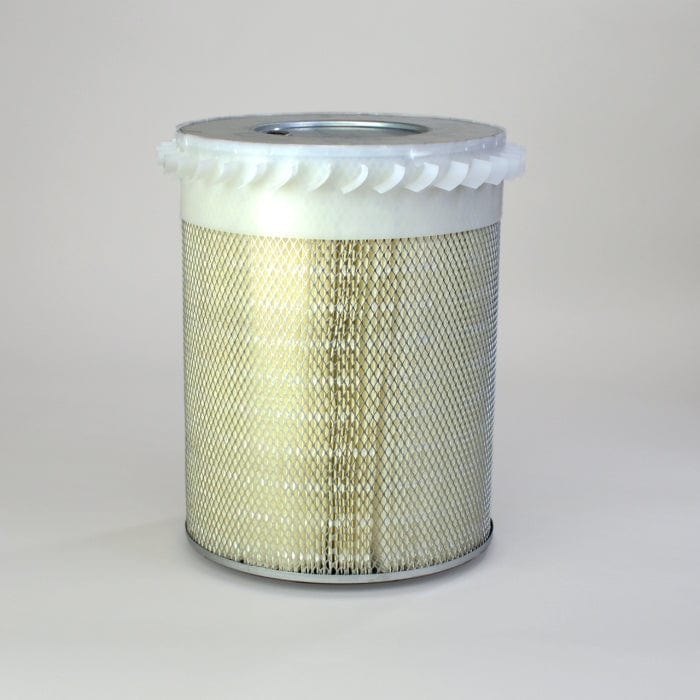

Air Filter, Primary Finned - Donaldson P181053
Air Filter, Primary Finned - Donaldson P181053
Regular price
£133.56
Regular price
Sale price
£133.56
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181053
Air Filter, Primary Finned| Outer Diameter | 13.84 inch (351.5 mm) |
| Inner Diameter | 9.47 inch (240.5 mm) |
| Length | 18.00 inch (457.2 mm) |
| Minor OD | 0.67 inch (17 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Finned |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 351.5 mm (13.84 inch)
- Inner Diameter: 240.5 mm (9.47 inch)
- Length: 457.2 mm (18.00 inch)
Packaged Dimensions
- Packaged Length: 0.405 m (16.20 inch)
- Packaged Width: 0.410 m (16.40 inch)
- Packaged Height: 0.488 m (19.50 inch)
- Packaged Weight: 5.173 kg (11.40 lb)
- Packaged Volume: 0.084 m3 (3.00 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330025536
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN LAFRANCE | 20508000 | |
| AMERICAN LAFRANCE | 20508001 | |
| AMERICAN PARTS | 94730 | |
| BIG A | 94730 | |
| CATERPILLAR | 3I0805 | |
| CATERPILLAR | 3I0931 | |
| CUMMINS | 3000304 | |
| CUMMINS | 3013204 | |
| DART | SMP181053 | |
| FIAT | 69843 | |
| FORD | C6TZ9600B | |
| GROVE | 9304100072 | |
| GUARDIAN | G121623 | |
| HAVAM | HD7415 | |
| HITACHI | GR9304100072 | |
| KRALINATOR | LA909 | |
| KRALINATOR | LA909F | |
| MANITOWOC | 9304100072 | |
| NELSON | 70824L | |
| NELSON | 70824N | |
| NELSON WINSLOW | 121623 | |
| TFMC | T47808 | |
| VMC | AF181053 | |
| WALGAHN-MOTORENTECHN | 811069 | |
| WALGAHN-MOTORENTECHN | 00811069 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| GROVE LT400 | - | CRANE MOBILE | - | - LT400 | - |
| GROVE RT625 | - | CRANE MOBILE | - | CUMMINS V504 | - |
| GROVE RT630 | - | CRANE MOBILE | - | CUMMINS V504 | - |
| GROVE RT740 | - | CRANE MOBILE | - | CUMMINS V555 | - |
| GROVE RT755 | - | CRANE MOBILE | - | CUMMINS V555 | - |
| GROVE RT865 | - | CRANE MOBILE | - | CUMMINS N855 | - |
| GROVE RT980 | - | CRANE MOBILE | - | CUMMINS NT855 | - |
| GROVE TM2500 | - | CRANE MOBILE | - | MAN D2542 | - |
| GROVE TMS760 | - | CRANE MOBILE | - | - TMS760 | - |
| GROVE TMS865 | - | CRANE MOBILE | - | - TMS865 | - |
