• Donaldson Air Filter, Primary Finned - Donaldson P148969
1 1

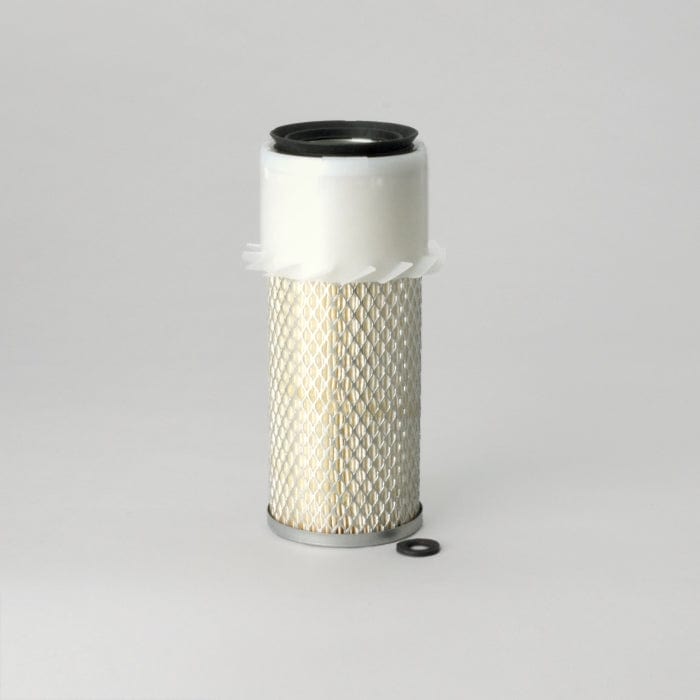

Air Filter, Primary Finned - Donaldson P148969

Air Filter, Primary Finned - Donaldson P148969

£22.76
£22.76
Sale Sold out
Shipping calculated at checkout.

Donaldson P148969

Air Filter, Primary Finned
Outer Diameter 4.09 inch (103.8 mm)
Inner Diameter 2.48 inch (62.9 mm)
Length 10.00 inch (254 mm)
Minor OD 0.66 inch (16.76 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Finned
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 103.8 mm (4.09 inch)
  • Inner Diameter: 62.9 mm (2.48 inch)
  • Length: 254 mm (10.00 inch)
  • Minor OD: 16.76 mm (0.66 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Finned
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.135 m (5.40 inch)
  • Packaged Width: 0.140 m (5.60 inch)
  • Packaged Height: 0.283 m (11.30 inch)
  • Packaged Weight: 0.690 kg (1.52 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-03
  • HTS Code: 8421310090
  • UPC Code: 742330013199

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN CRANE CORPORATION 1055134
CASE/CASE IH H425256
CLARK,J.L. 6598491
CUSHMAN 831677
DRESSER 135033
EXCEL 032029
EXCEL 32029
GEHL 121839
JACOBSEN 831677
JACOBSEN 554700
KNECHT LX14
KOMATSU 135033
KUBOTA 1528711081
NELSON 70757H
ORCHARD MACHINERY CORPORATION 831677
RANSOMES 831677
RANSOMES 554700
TAYLOR P144969
TOYOSHA 81148001010
TOYOSHA 811480010108
TOYOSHA 81148001000
TOYOSHA 81123002000
TOYOSHA 81123002010

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH DH4 - TRENCHER - - DH4 -
CASE/CASE IH DH4B - TRENCHER - - DH4B -
CASE/CASE IH MAXI-SNEAKER B - TRENCHER - - MAXI-SNEAKER B -
CASE/CASE IH MAXI-SNEAKER C - TRENCHER - - MAXI-SNEAKER C -
CASE/CASE IH MAXI-SNEAKER C - TRENCHER - KUBOTA V1505E -
