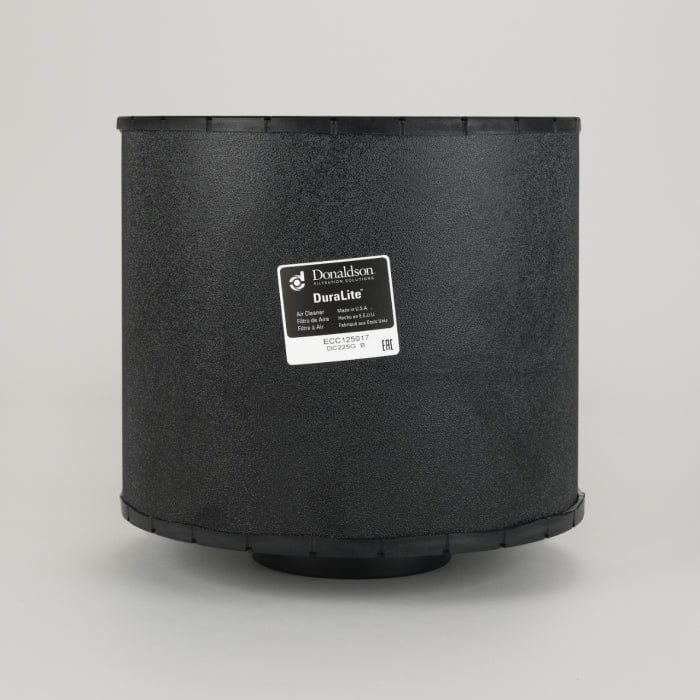

Air Filter, Primary Duralite - Donaldson C125017

Attributes

• Outlet Diameter: 127 mm (5.00 inch)
• Body Diameter Maximum: 317.5 mm (12.50 inch)
• Body Length: 279.6 mm (11.01 inch)
• Efficiency: 99.9
• Efficiency Test Std: ISO 5011
• Rated Flow LR: 19 m³/min (671 cfm)
• Rated Flow MR: 23.5 m³/min (830 cfm)
• Rated Flow HR: 26.9 m³/min (950 cfm)
• Restriction LR: 102 mm H2O (4.02 inch H2O)
• Restriction MR: 152 mm H2O (5.98 inch H2O)
• Restriction HR: 203 mm H2O (7.99 inch H2O)
• Family: ECC
• Type: Primary
• Style: Round
• Brand: DuraLite™
• Media Type: Cellulose

Packaged Dimensions

• Packaged Length: 0.328 m (13.10 inch)
• Packaged Width: 0.338 m (13.50 inch)
• Packaged Height: 0.338 m (13.50 inch)
• Packaged Weight: 2.388 kg (5.26 lb)
• Packaged Volume: 0.039 m3 (1.38 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421310090
• UPC Code: 742330108567
