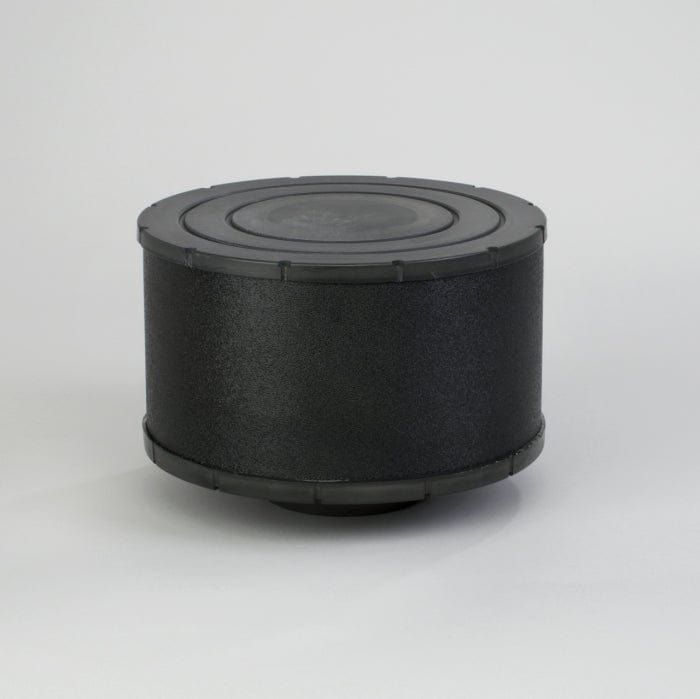

Air Filter, Primary Duralite - Donaldson C105028
Air Filter, Primary Duralite - Donaldson C105028
Regular price
£57.04
Regular price
Sale price
£57.04
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson C105028
Air Filter, Primary Duralite| Outlet Diameter | 4.00 inch (101.6 mm) |
| Body Diameter Maximum | 10.50 inch (266.7 mm) |
| Body Length | 6.00 inch (152.4 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 353 cfm (10 m³/min) |
| Rated Flow MR | 399 cfm (11.3 m³/min) |
| Rated Flow HR | 480 cfm (13.6 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECC |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 101.6 mm (4.00 inch)
- Body Diameter Maximum: 266.7 mm (10.50 inch)
- Body Length: 152.4 mm (6.00 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Rated Flow LR: 10 m³/min (353 cfm)
- Rated Flow MR: 11.3 m³/min (399 cfm)
- Rated Flow HR: 13.6 m³/min (480 cfm)
- Restriction LR: 102 mm H2O (4.02 inch H2O)
- Restriction MR: 152 mm H2O (5.98 inch H2O)
- Restriction HR: 203 mm H2O (7.99 inch H2O)
- Family: ECC
- Type: Primary
- Style: Round
- Brand: DuraLite™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.295 m (11.81 inch)
- Packaged Width: 0.295 m (11.81 inch)
- Packaged Height: 0.197 m (7.87 inch)
- Packaged Weight: 1.389 kg (3.06 lb)
- Packaged Volume: 0.018 m3 (0.64 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330108550
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| JOHN DEERE | RE63779 |
