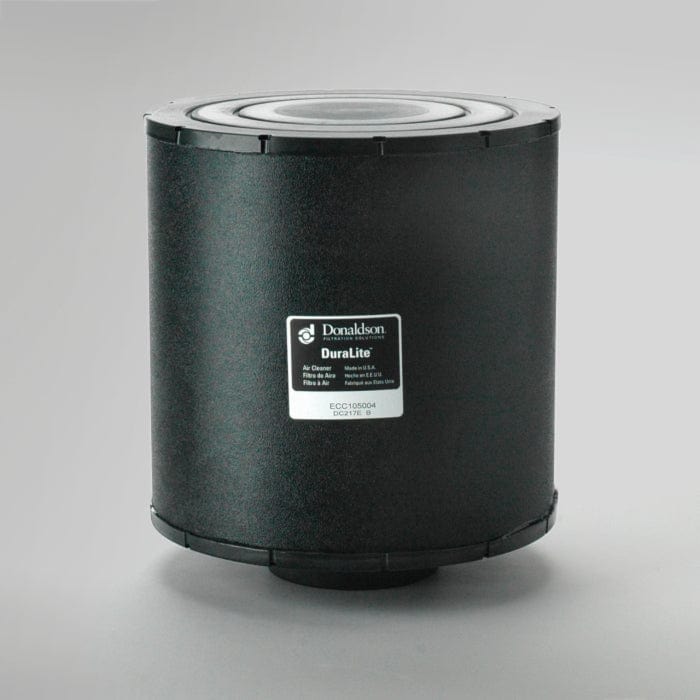

Air Filter, Primary Duralite - Donaldson C105004
Air Filter, Primary Duralite - Donaldson C105004
Regular price
£60.66
Regular price
Sale price
£60.66
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson C105004
Air Filter, Primary Duralite| Outlet Diameter | 4.00 inch (101.6 mm) |
| Body Diameter Maximum | 10.50 inch (266.7 mm) |
| Body Length | 10.50 inch (266.7 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 399 cfm (11.3 m³/min) |
| Rated Flow MR | 501 cfm (14.2 m³/min) |
| Rated Flow HR | 622 cfm (17.6 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECC |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 101.6 mm (4.00 inch)
- Body Diameter Maximum: 266.7 mm (10.50 inch)
- Body Length: 266.7 mm (10.50 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Rated Flow LR: 11.3 m³/min (399 cfm)
- Rated Flow MR: 14.2 m³/min (501 cfm)
- Rated Flow HR: 17.6 m³/min (622 cfm)
- Restriction LR: 102 mm H2O (4.02 inch H2O)
- Restriction MR: 152 mm H2O (5.98 inch H2O)
- Restriction HR: 203 mm H2O (7.99 inch H2O)
- Family: ECC
- Type: Primary
- Style: Round
- Brand: DuraLite™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.263 m (10.53 inch)
- Packaged Width: 0.263 m (10.53 inch)
- Packaged Height: 0.312 m (12.48 inch)
- Packaged Weight: 1.720 kg (3.79 lb)
- Packaged Volume: 0.025 m3 (0.91 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330001028
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1458C | |
| ALLISON | 23519704 | |
| BIG A | 94423 | |
| CASE/CASE IH | 3247916M3 | |
| CATERPILLAR | 3I0021 | |
| COMPAIR | 438674 | |
| CUMMINS | CDD000168 | |
| DETROIT DIESEL | DC105004 | |
| DETROIT DIESEL | 23519704 | |
| DEUTZ | 300487 | |
| DONSSON | DA7802 | |
| EIMCO | 64101629 | |
| FIAT | 8008293 | |
| FREIGHTLINER | DNC105004 | |
| GRIMMER SCHMIDT | 927739 | |
| GRIMMER SCHMIDT | 12427739 | |
| GT PIECES ET SERVICES | 2242905 | |
| HAVAM | HD1885 | |
| HERKULES (TELSNIG) | 400000668 | |
| HIMOINSA | 3031800 | |
| HURRICANE COMPRESSOR | 12427739 | |
| IVECO | 8008293 | |
| JENBACHER WERKE | 107938 | |
| JOHN DEERE | RE56422 | |
| JOHN DEERE | RE63780A | |
| KRALINATOR | LA1891 | |
| LECHMOTOREN | 105020045 | |
| LEROI | 438674 | |
| LOESING | 21807 | |
| LOESING | 021807 | |
| MACO-MEUDON COMPRESSORS | 560324 | |
| METSO | 21880064 | |
| NATO (NSN) | 2940014086628 | |
| ORENSTEIN & KOPPEL | 1758279 | |
| ORENSTEIN & KOPPEL | 17582794 | |
| RAINBOW MANUFACTURING | 15628 | |
| SANDVIK | 4710030 | |
| SANDVIK | 64101629 | |
| SDMO | 30801011204 | |
| SULLAIR | 560324 | |
| SULLAIR | 68560324 | |
| SUPERIOR COMPRESSOR | 12427739 | |
| TAMROCK | 4710030 | |
| TAMROCK | 04710030 | |
| TEREX | 17582794 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686344 | |
| VMC | AH105004 | |
| WALGAHN-MOTORENTECHN | 00810057 | |
| WALGAHN-MOTORENTECHN | 810057 |
