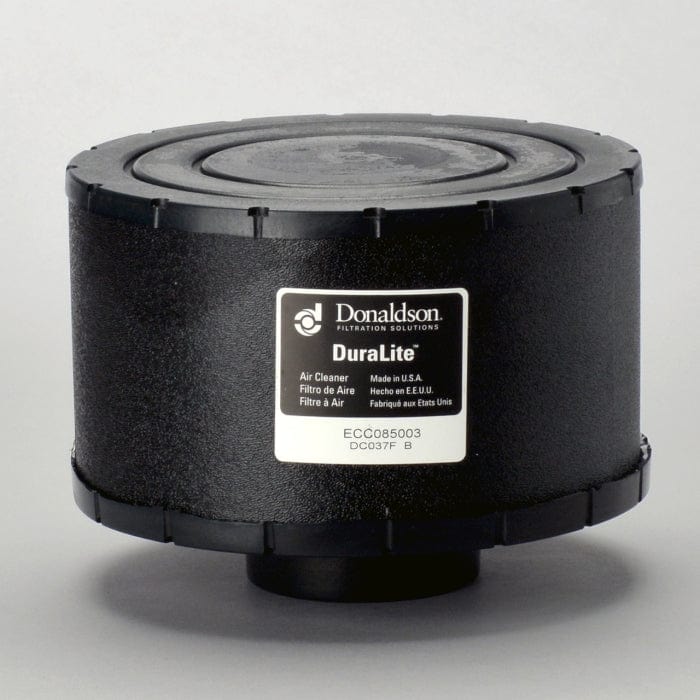

Air Filter, Primary Duralite - Donaldson C085003
Air Filter, Primary Duralite - Donaldson C085003
Regular price
£55.12
Regular price
Sale price
£55.12
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson C085003
Air Filter, Primary Duralite| Outlet Diameter | 3.00 inch (76.2 mm) |
| Body Diameter Maximum | 8.50 inch (215.9 mm) |
| Body Length | 5.00 inch (127 mm) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 152 cfm (4.3 m³/min) |
| Rated Flow MR | 180 cfm (5.1 m³/min) |
| Rated Flow HR | 215 cfm (6.1 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECC |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 76.2 mm (3.00 inch)
- Body Diameter Maximum: 215.9 mm (8.50 inch)
- Body Length: 127 mm (5.00 inch)
Packaged Dimensions
- Packaged Length: 0.227 m (9.06 inch)
- Packaged Width: 0.227 m (9.06 inch)
- Packaged Height: 0.177 m (7.09 inch)
- Packaged Weight: 1.040 kg (2.29 lb)
- Packaged Volume: 0.010 m3 (0.34 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330000953
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1542C | |
| BIG A | 94268 | |
| BOSS INDUSTRIES | 15090401 | |
| CATERPILLAR | 3I0016 | |
| CATERPILLAR | 160146 | |
| CHARDONNET | 7308500300 | |
| CUMMINS | 3910946 | |
| DMT CORPORATION | 100553 | |
| DMT CORPORATION | 2531763 | |
| FORD | 9576C085003 | |
| FREIGHTLINER | DNC085003 | |
| GRADALL | 80273037 | |
| GRIMMER SCHMIDT | 15090401 | |
| HAVAM | HD1880 | |
| HERKULES (TELSNIG) | 400000667 | |
| HERKULES (TELSNIG) | 600000667 | |
| HURRICANE COMPRESSOR | 15090401 | |
| INGERSOLL RAND | 7554206743 | |
| LISTER PETTER | 00003043 | |
| LISTER PETTER | 3043 | |
| LOESING | 020024 | |
| LOESING | 20024 | |
| MACO-MEUDON COMPRESSORS | 529894 | |
| PERKINS | ECC085003 | |
| SDMO | 30801011207 | |
| SDMO | 330560309 | |
| SMITH AIR COMPRESSORS | 15090401 | |
| SULLAIR | 529894 | |
| SULLAIR | 250030259 | |
| SULLAIR | 2500303259 | |
| SULLAIR | 68529894 | |
| SUPERIOR COMPRESSOR | 15090401 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686336 | |
| VMC | AH85003 | |
| WALGAHN-MOTORENTECHN | 00810054 | |
| WALGAHN-MOTORENTECHN | 810054 |
