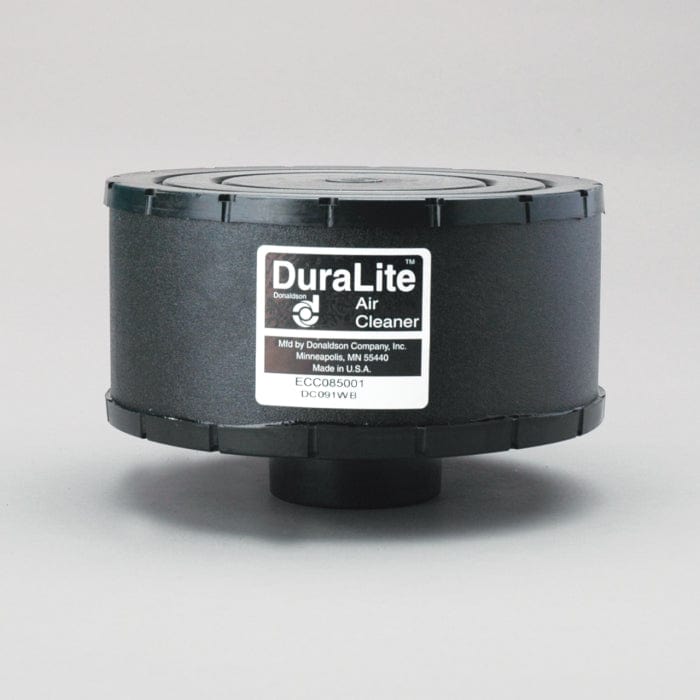

Air Filter, Primary Duralite - Donaldson C085001
Air Filter, Primary Duralite - Donaldson C085001
Regular price
£38.70
Regular price
Sale price
£38.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson C085001
Air Filter, Primary Duralite| Outlet Diameter | 2.50 inch (63.5 mm) |
| Body Diameter Maximum | 8.50 inch (215.9 mm) |
| Body Length | 4.00 inch (101.6 mm) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 113 cfm (3.2 m³/min) |
| Rated Flow MR | 145 cfm (4.1 m³/min) |
| Rated Flow HR | 170 cfm (4.8 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECC |
| Primary Application | BRODERSON 60012047 |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 63.5 mm (2.50 inch)
- Body Diameter Maximum: 215.9 mm (8.50 inch)
- Body Length: 101.6 mm (4.00 inch)
Packaged Dimensions
- Packaged Length: 0.215 m (8.58 inch)
- Packaged Width: 0.215 m (8.58 inch)
- Packaged Height: 0.166 m (6.63 inch)
- Packaged Weight: 0.960 kg (2.12 lb)
- Packaged Volume: 0.010 m3 (0.34 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 84213100 90
- UPC Code: 742330000939
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 94446 | |
| BIG A | 94446 | |
| BRODERSON | 060012047 | |
| BRODERSON | 60012047 | |
| CASE/CASE IH | NX14210058 | |
| CATERPILLAR | 160250 | |
| CATERPILLAR | 3I0014 | |
| DETROIT DIESEL | DC085001 | |
| FORD | 9576C085001 | |
| FREIGHTLINER | C085001016140 | |
| GARDNER DENVER | 1416227 | |
| HAVAM | HD1878 | |
| JOHN DEERE | RE593694 | |
| JOHN DEERE | RE502694 | |
| JOHN DEERE | RE503694 | |
| KRALINATOR | LA1714 | |
| LEROI | GD1416227 | |
| LOESING | 021883 | |
| LOESING | 21883 | |
| ONAN | 140264601 | |
| ONAN | 0140264601 | |
| SDMO | 30801047801 | |
| SDMO | 330560589 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686328 | |
| VMC | AH85001 | |
| WALGAHN-MOTORENTECHN | 00810052 | |
| WALGAHN-MOTORENTECHN | 810052 | |
| WESTERN STAR TRUCK | ECC085001 |
