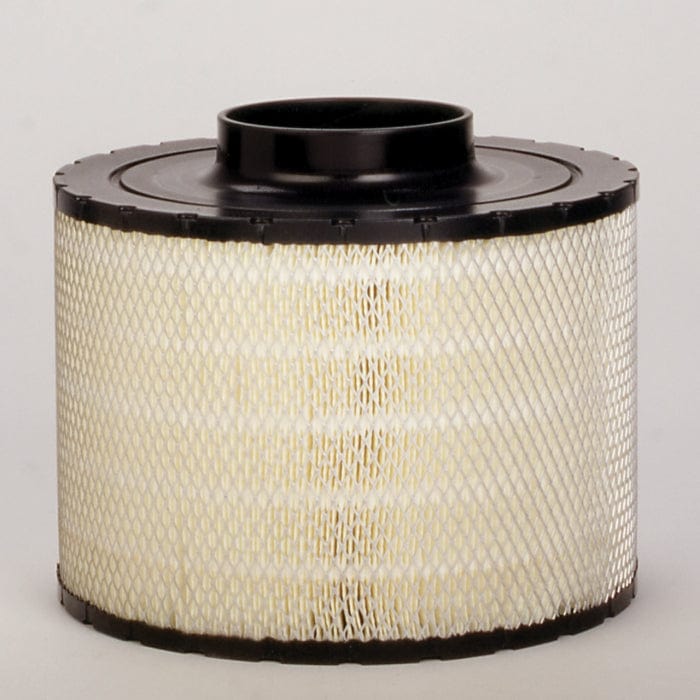

Air Filter, Primary Duralite - Donaldson B125011
Air Filter, Primary Duralite - Donaldson B125011
Regular price
£71.90
Regular price
Sale price
£71.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson B125011
Air Filter, Primary Duralite| Outlet Diameter | 5.00 inch (127 mm) |
| Body Diameter Maximum | 12.50 inch (317.5 mm) |
| Body Length | 8.98 inch (228.1 mm) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 699 cfm (19.8 m³/min) |
| Rated Flow MR | 883 cfm (25 m³/min) |
| Rated Flow HR | 1024 cfm (29 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECB |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 127 mm (5.00 inch)
- Body Diameter Maximum: 317.5 mm (12.50 inch)
- Body Length: 228.1 mm (8.98 inch)
- Efficiency Test Std: ISO 5011
- Rated Flow LR: 19.8 m³/min (699 cfm)
- Rated Flow MR: 25 m³/min (883 cfm)
- Rated Flow HR: 29 m³/min (1024 cfm)
- Restriction LR: 102 mm H2O (4.02 inch H2O)
- Restriction MR: 152 mm H2O (5.98 inch H2O)
- Restriction HR: 203 mm H2O (7.99 inch H2O)
- Family: ECB
- Type: Primary
- Style: Round
- Brand: DuraLite™
Packaged Dimensions
- Packaged Length: 0.313 m (12.50 inch)
- Packaged Width: 0.313 m (12.50 inch)
- Packaged Height: 0.305 m (12.20 inch)
- Packaged Weight: 2.853 kg (6.29 lb)
- Packaged Volume: 0.031 m3 (1.10 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 84213100 90
- UPC Code: 742330117248
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| HAVAM | HD1938 | |
| HIMOINSA | 3033342 | |
| LOESING | 20125 | |
| LOESING | 020125 | |
| MTU | 13125011 | |
| SAUER DANFOSS INC | 11049982 | |
| SCANIA | 1332341 | |
| SULLAIR | B125011016140 | |
| WALGAHN-MOTORENTECHN | 00811776 | |
| WALGAHN-MOTORENTECHN | 811776 |
