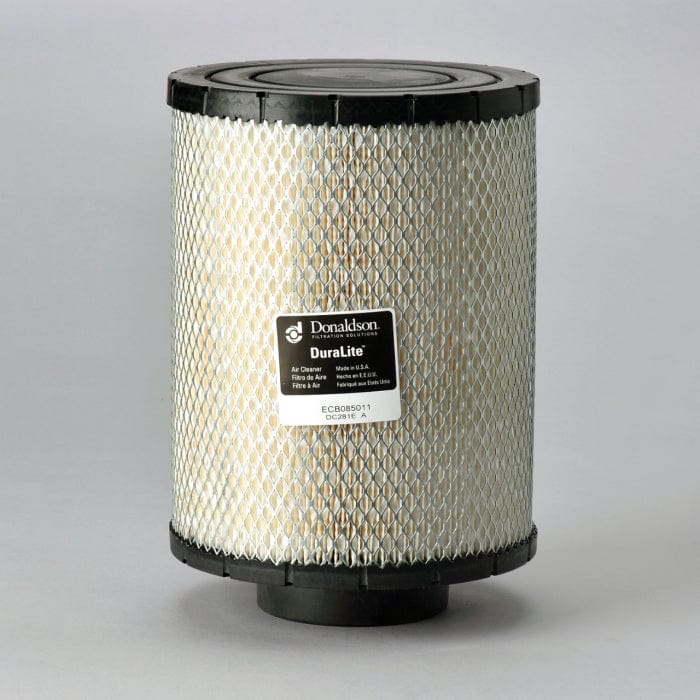

Air Filter, Primary Duralite - Donaldson B085011
Air Filter, Primary Duralite - Donaldson B085011
Regular price
£48.82
Regular price
Sale price
£48.82
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson B085011
Air Filter, Primary Duralite| Outlet Diameter | 4.00 inch (101.6 mm) |
| Body Diameter Maximum | 8.50 inch (216 mm) |
| Body Length | 11.00 inch (279.3 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 279 cfm (7.9 m³/min) |
| Rated Flow MR | 399 cfm (11.3 m³/min) |
| Rated Flow HR | 470 cfm (13.3 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECB |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 101.6 mm (4.00 inch)
- Body Diameter Maximum: 216 mm (8.50 inch)
- Body Length: 279.3 mm (11.00 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Rated Flow LR: 7.9 m³/min (279 cfm)
- Rated Flow MR: 11.3 m³/min (399 cfm)
- Rated Flow HR: 13.3 m³/min (470 cfm)
- Restriction LR: 102 mm H2O (4.02 inch H2O)
- Restriction MR: 152 mm H2O (5.98 inch H2O)
- Restriction HR: 203 mm H2O (7.99 inch H2O)
- Family: ECB
- Type: Primary
- Style: Round
- Brand: DuraLite™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.220 m (8.80 inch)
- Packaged Width: 0.220 m (8.80 inch)
- Packaged Height: 0.325 m (13.00 inch)
- Packaged Weight: 1.421 kg (3.13 lb)
- Packaged Volume: 0.017 m3 (0.60 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330000526
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1474C | |
| BAUDOUIN | 16061240V | |
| BAUDOUIN | X5985006 | |
| BIG A | 94637 | |
| CATERPILLAR | 3I0003 | |
| CUMMINS | 3912020 | |
| CUMMINS | 2912986 | |
| FORD | 9576B085011 | |
| FREIGHTLINER | DNB085011 | |
| GILLIG | 139767 | |
| GILLIG | 0139767N000 | |
| GILLIG | 0139767 | |
| HAVAM | HD1915 | |
| HERKULES (TELSNIG) | B085008 | |
| HOBART | 181128 | |
| KIRLOSKAR | 4H134601000 | |
| KOHLER | GM85361 | |
| KRALINATOR | LA1458 | |
| LOESING | 21025 | |
| LOESING | 021025 | |
| PACCAR | Y06012208 | |
| VMC | AH85011 | |
| WALGAHN-MOTORENTECHN | 810020 | |
| WALGAHN-MOTORENTECHN | 00810020 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CUMMINS 6BTA5.9 | - | ENGINE | - | - 6BTA5.9 | - |
| INGERSOLL RAND HP450W | - | COMPRESSOR | - | CUMMINS 6BTA5.9 | - |
| INGERSOLL RAND TITAN 465 | - | PAVER | - | CUMMINS 6BTA5.9 | - |
| INGERSOLL RAND VHP400W | - | COMPRESSOR | - | CUMMINS 6BTA5.9 | - |
| INGERSOLL RAND XP525WCU | - | COMPRESSOR | - | CUMMINS 6BTA5.9 | - |
