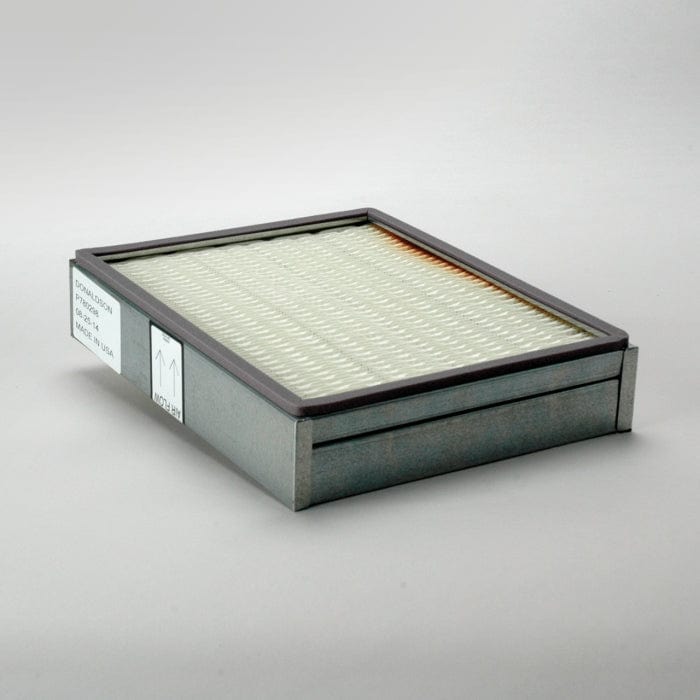

Air Filter, Panel Ventilation - Donaldson P780298
Air Filter, Panel Ventilation - Donaldson P780298
Regular price
£40.40
Regular price
Sale price
£40.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P780298
Air Filter, Panel Ventilation| Length | 12.26 inch (311.3 mm) |
| Width | 9.50 inch (241.3 mm) |
| Height | 2.44 inch (62.1 mm) |
| Efficiency | 99 |
| Efficiency Test Std | ISO 5011 |
| Primary Application | CATERPILLAR 7X6041 |
| Type | Ventilation |
| Style | Panel |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Length: 311.3 mm (12.26 inch)
- Width: 241.3 mm (9.50 inch)
- Height: 62.1 mm (2.44 inch)
- Efficiency: 99
- Efficiency Test Std: ISO 5011
- Primary Application: CATERPILLAR 7X6041
- Type: Ventilation
- Style: Panel
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.414 m (16.54 inch)
- Packaged Width: 0.325 m (12.99 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 0.772 kg (1.70 lb)
- Packaged Volume: 0.014 m3 (0.49 ft3)
Other Information
- Country of Origin: Italy
- HTS Code: 8421392590
- UPC Code: 742330165829
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 93448 | |
| CATERPILLAR | 7X0041 | |
| CATERPILLAR | 7X6041 | |
| GPC | EP5147 | |
| KRALINATOR | LA1796 | |
| LOESING | 020054 | |
| LOESING | 20677 | |
| LOESING | 20054 | |
| LOESING | 020677 | |
| NELSON | 87295A | |
| TIM | 7X6041 | |
| VMC | AF780298 | |
| WALGAHN-MOTORENTECHN | 00811906 | |
| WALGAHN-MOTORENTECHN | 811906 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 814F | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3176TAAC | - |
| CATERPILLAR 815F | - | COMPACTOR | 800 SERIES | CATERPILLAR 3176C ATAAC | - |
| CATERPILLAR 816F | - | COMPACTOR | 800 SERIES | CATERPILLAR 3176C ATAAC | - |
| CATERPILLAR 918F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 924F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 928F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 933C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR 938F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 939 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR 939C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3046T | - |
| CATERPILLAR 950F II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 950G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | - |
| CATERPILLAR 950H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 960F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 962G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | - |
| CATERPILLAR 962H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 966F II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 966G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3176TAA | - |
| CATERPILLAR 966H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C11TA ACERT | - |
| CATERPILLAR 970F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 972G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3196TAE | - |
| CATERPILLAR 972H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C13TA ACERT | - |
| CATERPILLAR 980G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406CE-2 | - |
| CATERPILLAR 980H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C15TA ACERT | - |
| CATERPILLAR D3C III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D4C III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR D5C III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3046 | - |
| CATERPILLAR IT18F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3114 DIT | - |
| CATERPILLAR IT24F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3114 DIT | - |
| CATERPILLAR IT28F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3116 DIT | - |
| CATERPILLAR IT38F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR IT62G II | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR IT62H | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR C7 ACERT | - |
