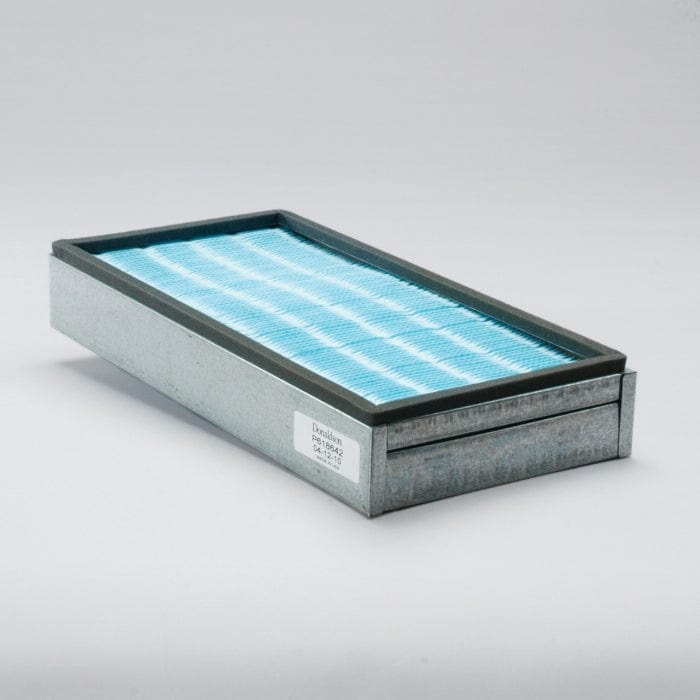

Air Filter, Panel - Donaldson P618642
Air Filter, Panel - Donaldson P618642
Regular price
£45.78
Regular price
Sale price
£45.78
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P618642
Air Filter, PanelShare
Collapsible content
Specifications
Attributes
- Length: 405.2 mm (15.95 inch)
- Width: 199.9 mm (7.87 inch)
- Height: 65.3 mm (2.57 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: CATERPILLAR 1193355
- Style: Panel
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 1.48 FT
- Packaged Width: 0.95 FT
- Packaged Height: 0.23 FT
- Packaged Weight: 1.389 kg (3.06 lb)
- Packaged Volume: 0.009 m3 (0.33 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330198803
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1193355 | |
| CATERPILLAR | 2686704 | |
| VMC | AF618642 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 627G | - | SCRAPER | 600 SERIES | CATERPILLAR 3306, C-9 | - |
| CATERPILLAR 631G | - | SCRAPER | - | CATERPILLAR 3408 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3408E | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR C9 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3306 | - |
| CATERPILLAR 638G | - | SCRAPER | - | CATERPILLAR C9 | - |
| CATERPILLAR 725 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR 725C | 2013/2015 | DUMP TRUCK ARTICULATED | - | CATERPILLAR C9.3 | - |
| CATERPILLAR 730 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3196TAE | - |
| CATERPILLAR 735 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3406E | - |
| CATERPILLAR 740 | - | DUMP TRUCK ARTICULATED | 700 SERIES | CATERPILLAR 3406E | - |
| CATERPILLAR 740B | - | DUMP TRUCK ARTICULATED | - | CATERPILLAR C15TA ACERT | - |
| CATERPILLAR 770 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 770 | - | HAUL TRUCK | - | CATERPILLAR C15TAACERT | - |
| CATERPILLAR 772 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 784C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TAE | - |
| CATERPILLAR 785C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512BTA | - |
| CATERPILLAR 785D | - | HAUL TRUCK | - | CATERPILLAR 3512C | - |
| CATERPILLAR 785D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512CTA | - |
| CATERPILLAR 789C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 789D | - | DUMP TRUCK | - | CATERPILLAR 3516 | - |
| CATERPILLAR 793D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 797 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TAE | - |
| CATERPILLAR 797B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | - |
| CATERPILLAR 980G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406CE-2 | - |
| CATERPILLAR 980H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C15TA ACERT | - |
| CATERPILLAR D250E | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D250E II | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR D300E | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D300E II | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR RM300 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR C11 ACERT | - |
| CATERPILLAR RM500 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR C15 ACERT | - |
