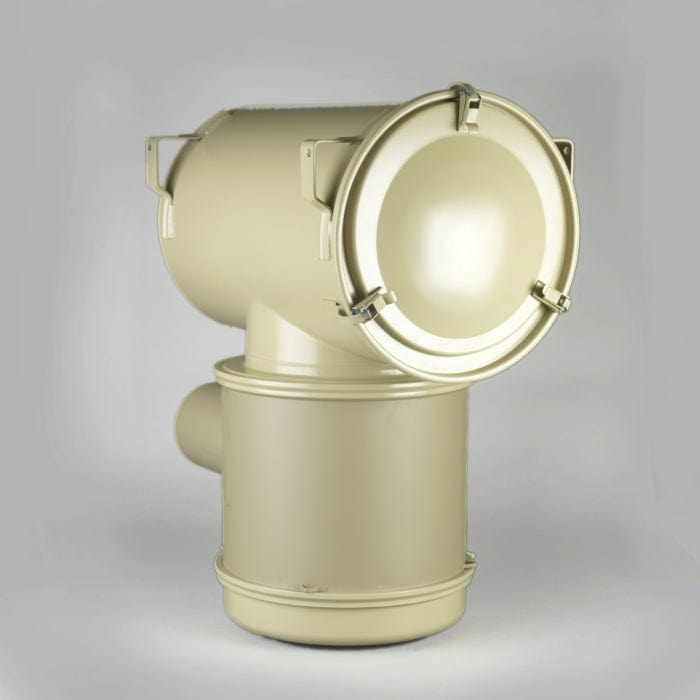

Air Cleaner, Stg Donaclone Tubular - Donaldson G161020
Air Cleaner, Stg Donaclone Tubular - Donaldson G161020
Regular price
£1,849.52
Regular price
Sale price
£1,849.52
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G161020
Air Cleaner, Stg Donaclone Tubular| Width | 17.99 inch (457 mm) |
| Inlet Diameter | 5.98 inch (152 mm) |
| Outlet Diameter | 8.00 inch (203.2 mm) |
| Body Diameter Maximum | 15.98 inch (406 mm) |
| Body Length | 24.00 inch (609.7 mm) |
| Overall Length | 29.56 inch (750.824 mm) |
| Rated Flow LR | 1413 cfm (40 m³/min) |
| Rated Flow MR | 1307 cfm (37 m³/min) |
| Rated Flow HR | 1466 cfm (41.5 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Style | Tubular |
| Family | STG |
| Brand | Donaclone™ |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALLIED SYSTEM | 226636 | |
| ASTEC UNDERGROUND | 3018051282 | |
| BEST ENGINEERING | P05297 | |
| CMI | P1023185101 | |
| CMI | P1073185101 | |
| EIMCO | 64133050 | |
| ENMTP CPG | 5606336 | |
| LIEBHERR | 5606336 | |
| SANDVIK | 64133050 | |
| SIGMA AIR CONDITIONING | 460C028 |
