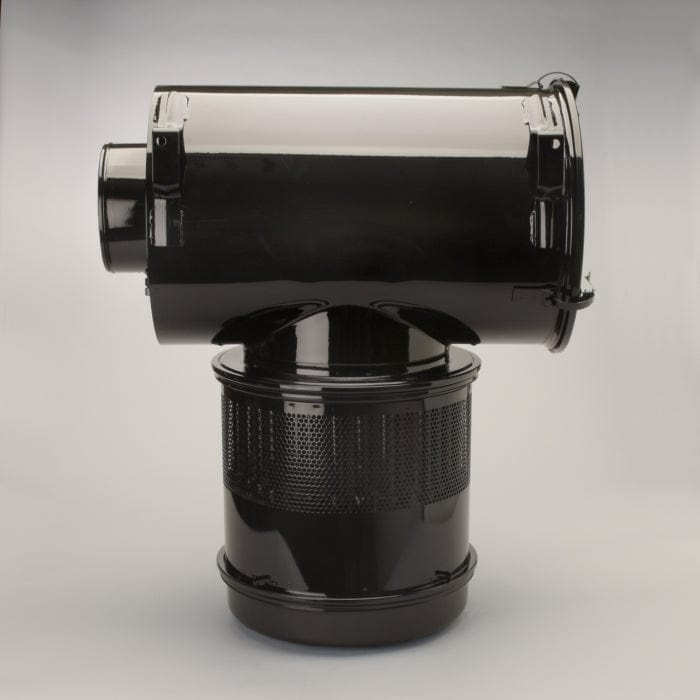

Air Cleaner, Stg Donaclone Peripheral - Donaldson G161006
Air Cleaner, Stg Donaclone Peripheral - Donaldson G161006
Regular price
£2,054.36
Regular price
Sale price
£2,054.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G161006
Air Cleaner, Stg Donaclone Peripheral| Width | 17.99 inch (457 mm) |
| Inlet Diameter | 17.28 inch (439 mm) |
| Outlet Diameter | 8.00 inch (203.2 mm) |
| Body Diameter Maximum | 16.00 inch (406.4 mm) |
| Body Length | 13.60 inch (345.44 mm) |
| Overall Length | 29.56 inch (750.82 mm) |
| Rated Flow LR | 1360 cfm (38.5 m³/min) |
| Rated Flow MR | 1568 cfm (44.4 m³/min) |
| Rated Flow HR | 1759 cfm (49.8 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Style | Peripheral |
| Family | STG |
| Brand | Donaclone™ |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASTEC UNDERGROUND | 3018051022 | |
| CUMMINS | 3039481 | |
| DRESSER | PB5986 | |
| DRILTECH | 021237001 | |
| EUCLID | E12631126 | |
| INGERSOLL RAND | 39808670 | |
| INGERSOLL RAND | 52236940 | |
| KOMATSU | PB5986 | |
| KOMATSU | XA2066 | |
| PERLINI | 7W23A | |
| REICHDRILL | PS467018 | |
| SANDVIK | 021237001 | |
| SANDVIK | 21237001 | |
| UNIT RIG EQUIPMENT | 2003759 | |
| WEICHAI | 1002859642 |
