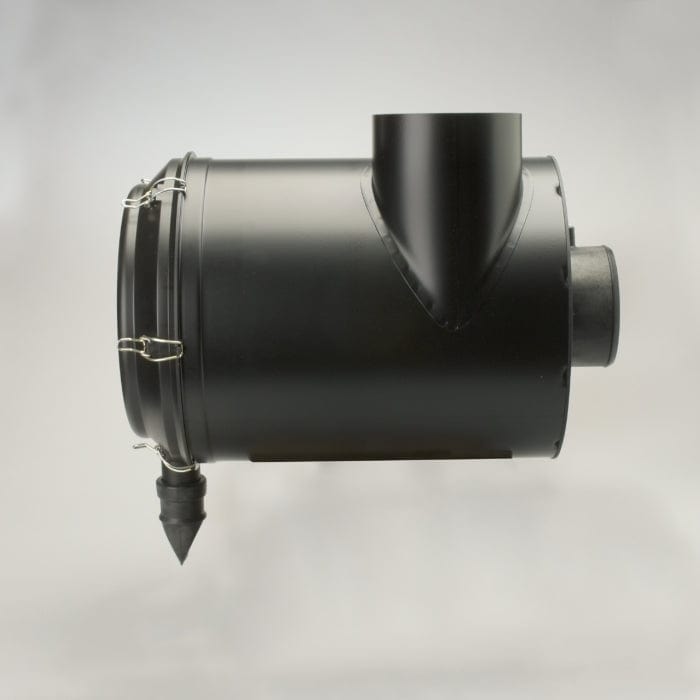

Air Cleaner, Frg Radialseal - Donaldson G150092
Air Cleaner, Frg Radialseal - Donaldson G150092
Regular price
£318.92
Regular price
Sale price
£318.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G150092
Air Cleaner, Frg Radialseal| Inlet Diameter | 7.01 inch (178 mm) |
| Outlet Diameter | 5.98 inch (152 mm) |
| Body Diameter Maximum | 15.00 inch (381 mm) |
| Body Length | 17.58 inch (446.5 mm) |
| Overall Length | 23.62 inch (600 mm) |
| Rated Flow LR | 713 cfm (20.2 m³/min) |
| Rated Flow MR | 805 cfm (22.8 m³/min) |
| Rated Flow HR | 943 cfm (26.7 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Style | Radialseal |
| Family | FRG |
| Brand | RadialSeal™ |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 178 mm (7.01 inch)
- Outlet Diameter: 152 mm (5.98 inch)
- Body Diameter Maximum: 381 mm (15.00 inch)
- Body Length: 446.5 mm (17.58 inch)
- Overall Length: 600 mm (23.62 inch)
- Rated Flow LR: 20.2 m³/min (713 cfm)
- Rated Flow MR: 22.8 m³/min (805 cfm)
- Rated Flow HR: 26.7 m³/min (943 cfm)
- Restriction LR: 152 mm H2O (5.98 inch H2O)
- Restriction MR: 203 mm H2O (7.99 inch H2O)
- Restriction HR: 254 mm H2O (10.00 inch H2O)
- Style: Radialseal
- Family: FRG
- Brand: RadialSeal™
Packaged Dimensions
- Packaged Length: 0.522 m (20.87 inch)
- Packaged Width: 0.473 m (18.90 inch)
- Packaged Height: 0.640 m (25.59 inch)
- Packaged Weight: 14.058 kg (31.00 lb)
- Packaged Volume: 0.164 m3 (5.84 ft3)
Other Information
- Country of Origin: Germany
- HTS Code: 8421310090
- UPC Code: 742330086728
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AG CHEM EQUIPMENT | 122214 | |
| AGCO | AG122214 | |
| ATLAS COPCO | 3222188159 | |
| ATLAS COPCO | 1615804900 | |
| BLOUNT | 10057638 | |
| BOSS INDUSTRIES | 305583 | |
| CASE/CASE IH | P6150581 | |
| CASE/CASE IH | 76049605 | |
| CATERPILLAR | 1420329 | |
| CATERPILLAR | 10057638 | |
| CEDARAPIDS | 4569000134 | |
| CMI | 004013461000 | |
| COMPAIR | 13368474 | |
| CRANE CARRIER | 102A0272 | |
| CUMMINS | CDD000120 | |
| CUMMINS | 10000632 | |
| CURTIS TOLEDO | RN24085 | |
| DENYO | Y0602046589 | |
| DETROIT DIESEL | DG150092 | |
| EIMCO | 02950418 | |
| ENGINES INC | 1 | |
| ENMTP CPG | 5613195 | |
| ENMTP CPG | 561319503 | |
| FIAT | 76049605 | |
| FORD OTOSAN | 7C469600AB | |
| FRANKLIN | 1514052 | |
| FURUKAWA | 38902111200 | |
| GENERAC | 0A9026 | |
| GENERAC | A9026 | |
| GROVE | 7304000649 | |
| GROVE | A108440 | |
| HOIST LIFTTRUCK MANUFACTURING | M15878 | |
| HURRICANE COMPRESSOR | 62766 | |
| INGERSOLL RAND | 2657921959 | |
| INGERSOLL RAND | 57921959 | |
| IVECO | G150092930610 | |
| IVECO | 97166007 | |
| JCB | 333T1149 | |
| KALMAR | 9209690024 | |
| KALMAR | EP0002744 | |
| KOHLER | EX65177 | |
| KRONE | 9386600 | |
| LIEBHERR | 561319503 | |
| LIEBHERR | 5613195 | |
| LINK BELT | M2H0004 | |
| LINK BELT | E9A0785 | |
| LOESING | 20667 | |
| LOESING | 020667 | |
| MANITOWOC | A108440 | |
| MANITOWOC | 7304000649 | |
| MI-JACK | 43950004 | |
| MI-JACK | 43950003 | |
| MI-JACK | F25621500003 | |
| MORBARK | 29321328 | |
| NACCO MATERIALS | 1456343 | |
| NATIONAL OILWELL | ZNIPI10 | |
| ORENSTEIN & KOPPEL | 2426659 | |
| OTTAWA TRUCK | 9209690024 | |
| PERKINS | 13000503 | |
| PETTIBONE | LL847459 | |
| QUINCY COMPRESSOR | 22864018 | |
| QUINCY COMPRESSOR | 2286418 | |
| SANDVIK | 55084696 | |
| SPARTAN MOTORS | 1230HH2001 | |
| SPARTAN MOTORS | FRG150092 | |
| SULLAIR | 2250131679 | |
| SULLAIR | 02250131679 | |
| TAMROCK | 04710009 | |
| TAMROCK | 4710009 | |
| TAMROCK | 0471000955009422 | |
| TAMROCK | 471000955009422 | |
| TAMROCK | 502852 | |
| TAMROCK | 55009422 | |
| TAMROCK | 02950418 | |
| TEREX | P6150581 | |
| TEREX | 15254860 | |
| TIMBERJACK | F121903 | |
| TORQUIP | 15254860 | |
| WEICHAI | 1001137045 |
