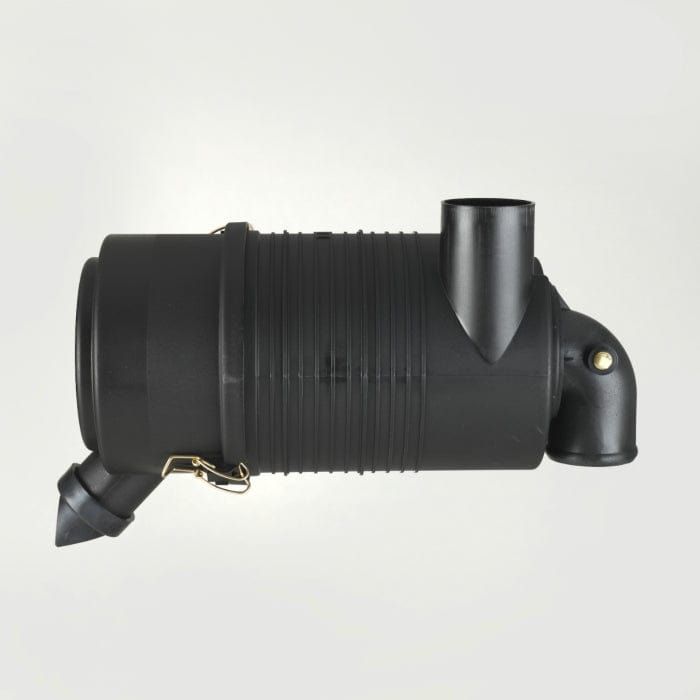

Air Cleaner, Fpg Radialseal - Donaldson G065411

Attributes

• Inlet Diameter: 63.5 mm (2.50 inch)
• Outlet Diameter: 63.5 mm (2.50 inch)
• Body Diameter Maximum: 171.2 mm (6.74 inch)
• Body Length: 217.9 mm (8.58 inch)
• Overall Length: 382.4 mm (15.06 inch)
• Rated Flow LR: 3.1 m³/min (109 cfm)
• Rated Flow MR: 3.5 m³/min (124 cfm)
• Rated Flow HR: 4.1 m³/min (145 cfm)
• Restriction LR: 152 mm H2O (5.98 inch H2O)
• Restriction MR: 203 mm H2O (7.99 inch H2O)
• Restriction HR: 254 mm H2O (10.00 inch H2O)
• Style: Radialseal
• Family: FPG
• Brand: RadialSeal™

Packaged Dimensions

• Packaged Length: 0.260 m (10.40 inch)
• Packaged Width: 0.198 m (7.90 inch)
• Packaged Height: 0.435 m (17.40 inch)
• Packaged Weight: 1.911 kg (4.21 lb)
• Packaged Volume: 0.023 m3 (0.83 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-04
• HTS Code: 8421310090
• UPC Code: 742330001400
