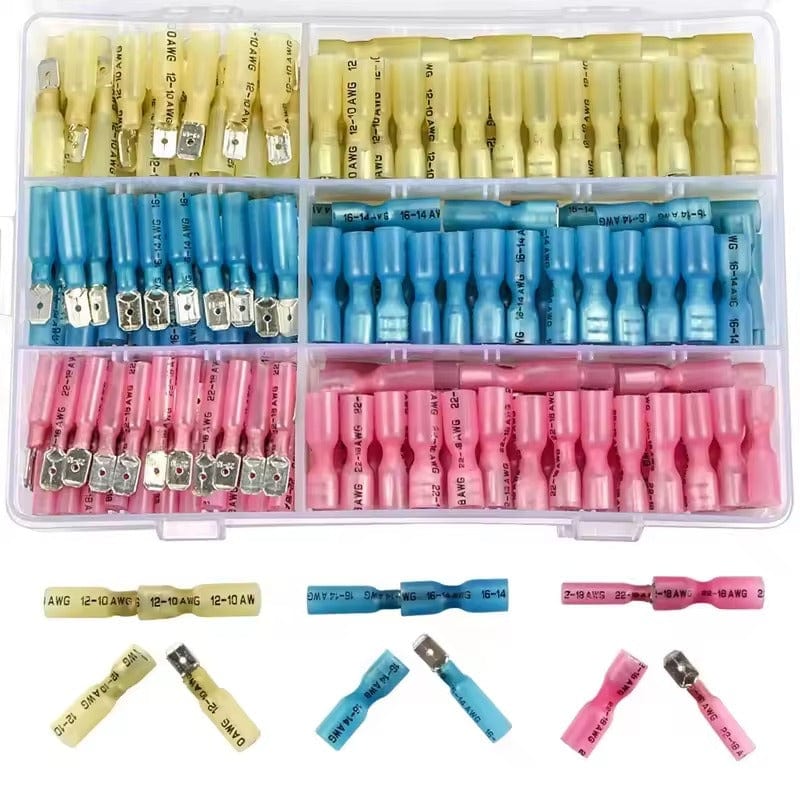

220Pcs Waterproof Insulated Heat Shrink Spade Connector Crimp Terminals Kit - Male and Female

Specification

• Colour: Red/Blue/Yellow
• A.W.G.: 22-18 (Red); 14-16 (Blue); 12-10 (Yellow)
• Wire range: 0.5-1.0mm² (Red); 1.5-2.5mm² (Blue); 4.0-6.0mm² (Yellow)
• Rated Current: 19A(Red); 27A(Blue); 48A(Yellow);
• Rated Voltage: 600V
• Shrinkage Ratio 3:1

Operating temperature range

• Operating temperature : -55°C～125°C
• Minimum shrink temperature : 80°C
• Fully recovery temperature : 130°C

Dimensions & Quantities

Red (22-18AWG)
Patch size: 0.8 x 6.35mm
Female full spade Terminal Connector: 40Pcs
Spade Terminal Connector: 40Pcs

Blue (16-14AWG)
Patch size: 0.8 x 6.35mm
Female full spade Terminal Connector: 40Pcs
Spade Terminal Connector: 40Pcs

Yellow (12-10AWG)
Patch size: 0.8 x 6.35mm
Female full spade Terminal Connector: 30Pcs
Spade Terminal Connector: 30Pcs
