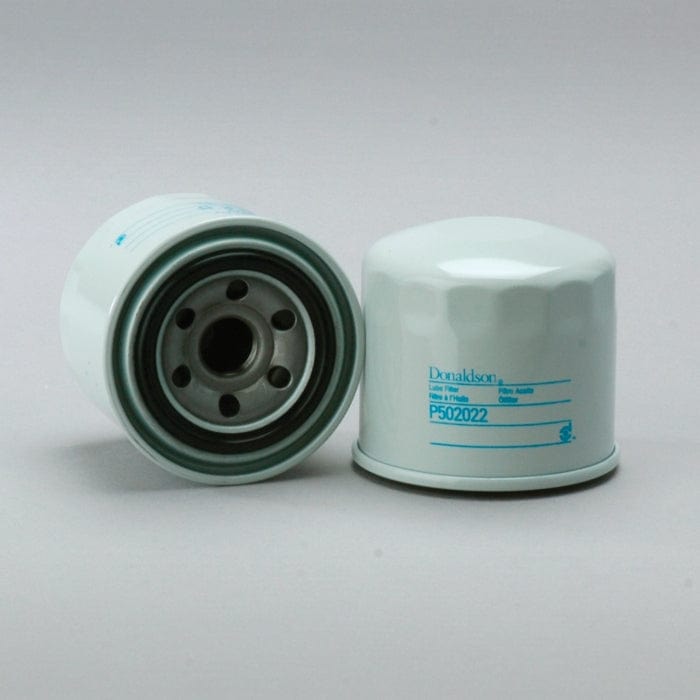

Lube Filter, Spin-On Full Flow - Donaldson P502022
Lube Filter, Spin-On Full Flow - Donaldson P502022
Regular price
£6.11
Regular price
Sale price
£6.11
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502022
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.15 inch (80 mm) |
| Thread Size | 3/4-16 |
| Length | 2.95 inch (75 mm) |
| Gasket OD | 2.48 inch (63 mm) |
| Gasket ID | 2.05 inch (52 mm) |
| Efficiency 99% | 35 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 12 psi (0.8 bar) |
| Bypass Valve Setting HR | 15 psi (1 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 80 mm (3.15 inch)
- Thread Size: 3/4-16
- Length: 75 mm (2.95 inch)
- Gasket OD: 63 mm (2.48 inch)
- Gasket ID: 52 mm (2.05 inch)
- Efficiency 99%: 35 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.8 bar (12 psi)
- Bypass Valve Setting HR: 1 bar (15 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.079 m (3.15 inch)
- Packaged Width: 0.079 m (3.15 inch)
- Packaged Height: 0.079 m (3.15 inch)
- Packaged Weight: 0.363 kg (0.80 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330109632
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2123 | |
| AC DELCO | PF41 | |
| AC DELCO | PF1238 | |
| AC DELCO | ST | |
| AC DELCO | X15 | |
| ALCO | SP892 | |
| ALCOA MARINE | TO136 | |
| ALCOA MARINE | DO721 | |
| AMERICAN MOTORS CORPORATION | TO136 | |
| AMERICAN MOTORS CORPORATION | DO721 | |
| AMERICAN PARTS | 865 | |
| AUSTIN-WESTERN | GFE139 | |
| AUTO PAR | FE147 | |
| BEDFORD | 7984256 | |
| BEDFORD | A810X6714KA | |
| BEDFORD | 5003914 | |
| BEDFORD | A810X6714JA | |
| BEDFORD | 5003929 | |
| BEDFORD | 5003930 | |
| BEDFORD | A810X6714LA | |
| BEDFORD | 5003967 | |
| BIG A | 866 | |
| BMW | 11421250534 | |
| BOBCAT | 5411642211 | |
| BOMAG | 5710621 | |
| BOSCH-REXROTH | 451103901 | |
| BOSCH-REXROTH | 451103127 | |
| BOSCH-REXROTH | P3084 | |
| BOSCH-REXROTH | O213 | |
| BOSCH-REXROTH | O133 | |
| BOSCH-REXROTH | P3050 | |
| BOSCH-REXROTH | 451103096 | |
| BOSCH-REXROTH | P2056 | |
| BOSCH-REXROTH | 9450732010 | |
| BOSCH-REXROTH | 451103050 | |
| BOSCH-REXROTH | 451103084 | |
| BOSCH-REXROTH | 451103043 | |
| BOSCH-REXROTH | 451103049 | |
| BOSCH-REXROTH | 451103019 | |
| BOSCH-REXROTH | 451103021 | |
| BOSCH-REXROTH | 451103026 | |
| BOSCH-REXROTH | 451102056 | |
| BOSCH-REXROTH | 451102001 | |
| BOSCH-REXROTH | 451102901 | |
| CARCARE | OF3816 | |
| CASE/CASE IH | 6911952 | |
| CLAAS | 656834 | |
| COMPAIR | 98262135 | |
| COMPAIR | 98262136 | |
| COOP | P460 | |
| COOPERS | Z782 | |
| COOPERS | LSF5132 | |
| CROSLAND | 576 | |
| CROSLAND | 306 | |
| CROSLAND | 2066 | |
| CROSLAND | 367 | |
| DAEWOO | DOHC | |
| DAIHATSU | 1560187203N | |
| DAIHATSU | 1560187702 | |
| DAIHATSU | 1561073000 | |
| DAIHATSU | 1560187702000 | |
| DAIHATSU | 1560187702N | |
| DAIHATSU | 1560187103NEW | |
| DAIHATSU | 1560187103N | |
| DAIHATSU | 1560187201N | |
| DANIEL DOYEN | DOF2300 | |
| DELUXE | WD427 | |
| DEUTZ | A04H4123 | |
| DONIT | 431078 | |
| DYNALIFE | CN966 | |
| DYNAPAC | 748620 | |
| EATON | 440002266 | |
| EVERGARD | L10028 | |
| EVERGARD | L10168 | |
| EVERGARD | L10183 | |
| FEDERAL MOTORS | FMS2110 | |
| FEDERAL MOTORS | FMS2108 | |
| FIAAM | FT4985 | |
| FIAAM | FT4531 | |
| FIAAM | FT4538 | |
| FIAT | 1164626 | |
| FISPA | FOE280 | |
| FORD | 81SM6714A3A | |
| FORD | 81SM6714A4A | |
| FORD | 741M6714BA | |
| FORD | A780X6714EA | |
| FORD | 5008720 | |
| FORD | 5008721 | |
| FORD | 5008722 | |
| FORD | A770X6714ABA | |
| FORD | 5005572 | |
| FORD | A770X6714BA | |
| FORD | A770X6714ACA | |
| FORD | A700X6714JA | |
| FORD | A770X6714DA | |
| FORD | A770X6714NA | |
| FORD | A770X6714TA | |
| FORD | A770X6714SA | |
| FORD | 741M6714CA | |
| FORD | 5012555 | |
| FORD | 5000480 | |
| FORD | 6066094 | |
| FORD | 6066095 | |
| FORD | 6066096 | |
| GENERAC | 75755 | |
| GENERAC | 075755 | |
| GIESSE | CLH4111 | |
| GUD | Z166 | |
| GUD | Z500A | |
| HARMO | S806 | |
| IAPCO | A0206002 | |
| INGERSOLL RAND | 59769265 | |
| JLG | 7041558 | |
| JOHN DEERE | AM10107 | |
| KAESER | 61901 | |
| KAESER | 619010 | |
| KHD | A04H4123 | |
| KHD | 1164626 | |
| KNECHT | AW141 | |
| KNECHT | OC84 | |
| KNECHT | OC78 | |
| KNECHT | OC198 | |
| KRALINATOR | L65A | |
| LAZORLITE | U111600 | |
| LEE MAXI | LF2816HP | |
| LEYLAND-DAF (LDV) | 12G400 | |
| LEYLAND-DAF (LDV) | GFE117 | |
| LEYLAND-DAF (LDV) | GFE139 | |
| LEYLAND-DAF (LDV) | BLM107020 | |
| LEYLAND-DAF (LDV) | CDU1179 | |
| LISTER PETTER | NE362247 | |
| LOCKHEED | LK1011 | |
| MONARK DIESEL | 30738050 | |
| MONARK DIESEL | 30738048 | |
| MONARK DIESEL | 30738026 | |
| MOTAQUIP | VFL123 | |
| MOTAQUIP | VFL194 | |
| MOTAQUIP | VFL197 | |
| MOTAQUIP | VFL190 | |
| MOTAQUIP | VFL203 | |
| MURPHY | MD43813 | |
| NEW HOLLAND | 276514 | |
| ORENSTEIN & KOPPEL | 1447560 | |
| P.B.R. | BC1094 | |
| PEUGEOT | 1109C5 | |
| PURFLUX | LS834 | |
| QUAKER STATE | QA46 | |
| REPCO | 1112002 | |
| SDMO | 330560158 | |
| SEAT | 3636608 | |
| SERVICE CHAMP | OF183 | |
| SHELL | SH519 | |
| SUZUKI | 1651087012N | |
| SUZUKI | 1651073012N | |
| SUZUKI | 1651073010N | |
| SUZUKI | 1651073013N | |
| SUZUKI | 1651073000N | |
| SUZUKI | 1651073002N | |
| SUZUKI | 1651073001N | |
| SUZUKI | 1560173002 | |
| TECALEMIT-TJ | FB2069 | |
| TECALEMIT-TJ | FB2064 | |
| TECALEMIT-TJ | FB2055 | |
| TECALEMIT-TJ | FB5311 | |
| TECHNOCAR | R922 | |
| TECHNOCAR | R458 | |
| TEHO | 4119 | |
| TEHO | OK6 | |
| UNION CITY BODY | C122 | |
| UNION CITY BODY | C630 | |
| UNIPART | GFE166 | |
| V.A.G. | 35115591 | |
| VAUXHALL | 7884256 | |
| VAUXHALL | 7973429 | |
| VAUXHALL | 7973235 | |
| VAUXHALL | 7965051 | |
| VIC | C703A | |
| VIC | C108 | |
| VM MOTORI | 4115063 | |
| VMC | LF502022 | |
| VOLKSWAGEN | 35115591 | |
| WACKER NEUSON | 82115 | |
| WARNER & SWASEY | WPH2816 | |
| WARNER & SWASEY | SD3 | |
| WIPAC | CA139 | |
| WIPAC | CA137 | |
| WIPAC | CA130 | |
| WORLDPARTS | W27319 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO XASS96DDN | - | COMPRESSOR | - | - XASS96DDN | - |
| ATLAS COPCO XS96DD | - | COMPRESSOR | - | - XS96DD | - |
| CASE/CASE IH CUB CADET 982 | - | LAWN EQUIPMENT | - | - CUB CADET 982 | - |
| COMPAIR 25 | - | COMPRESSOR | - | DEUTZ F2L1011 | - |
| DEUTZ A2L410 | - | ENGINE | - | - A2L410 | - |
| DEUTZ BF3L2011 | - | ENGINE | - | - BF3L2011 | - |
| DEUTZ BF3M2011 | - | ENGINE | - | - BF3M2011 | - |
| DEUTZ F1L411 | - | ENGINE | - | - F1L411 | - |
| DEUTZ F2L2012 | - | ENGINE | - | - F2L2012 | - |
| DEUTZ F2L410 | - | ENGINE | - | - F2L410 | - |
| DEUTZ F2L411 | - | ENGINE | - | - F2L411 | - |
| DEUTZ F2L511D | - | ENGINE | - | - F2L511D | - |
| DEUTZ F2M1008F | - | ENGINE | - | - F2M1008F | - |
| DEUTZ F2M1011 | - | ENGINE | - | - F2M1011 | - |
| DEUTZ F2M2012 | - | ENGINE | - | - F2M2012 | - |
| DEUTZ F3L2011 | - | ENGINE | - | - F3L2011 | - |
| DEUTZ F3M1008F | - | ENGINE | - | - F3M1008F | - |
| DEUTZ F3M2011 | - | ENGINE | - | - F3M2011 | - |
| DITCH WITCH 3610 | - | TRENCHER | - | DEUTZ F3L1011 | - |
| DITCH WITCH RT36 | - | TRENCHER | - | DEUTZ F3L2011 | - |
| DYNAPAC CC101 | - | COMPACTOR | - | - CC101 | - |
| DYNAPAC CC121 | - | COMPACTOR | - | - CC121 | - |
| DYNAPAC CC122 | - | COMPACTOR | - | DEUTZ F2L1011 | - |
| DYNAPAC CC122C | - | COMPACTOR | - | - CC122C | - |
| DYNAPAC CF11 | - | COMPACTOR | - | - CF11 | - |
| DYNAPAC CK11 | - | COMPACTOR | - | - CK11 | - |
| GOLDONI TRACTORS 45RS | - | TRACTOR | EURO | LOMBARDINI LDA625-3 | - |
| INTENSUS XD25 ROLLER | - | COMPACTOR | - | DEUTZ F2L1011 | - |
| JLG 1200SJP | - | BOOM LIFT | - | DEUTZ BF4M2011 | - |
| JLG 1350SJP | - | BOOM LIFT | - | DEUTZ BF4M2011 | - |
| JLG 800S | - | BOOM LIFT | - | DEUTZ F4M2011 | - |
| JLG 860SJ | - | BOOM LIFT | - | DEUTZ F4M2011 | - |
| KRIEGER 70A | - | TRACTOR | K SERIES | DEUTZ BF4L2011 | - |
| REFORM-WERKE 2002 | - | TRACTOR | METRAC | LOMBARDINI LDA904 | - |
| REFORM-WERKE 33 | - | TRACTOR | MULI/TRANSPORTER | - 33 | - |
| TEREX SKL834 | - | SKID STEER LOADER | - | - SKL834 | - |
| VERMEER RT450 | - | TRENCHER | - | DEUTZ F3L2011 | - |
